使用连接器
本节介绍连接器在表单上的使用，如何可视化的通过连接器调用第三方接口
准备工作
创建一个表单 天气测试 WeatherTesting，包含以下字段
Name 城市名称 文本框 字符串 长度50
Weather 天气 文本框 字符串 长度50
Note 备注 多行文本 字符串 长度2000
CreateTime 创建时间 日期时间

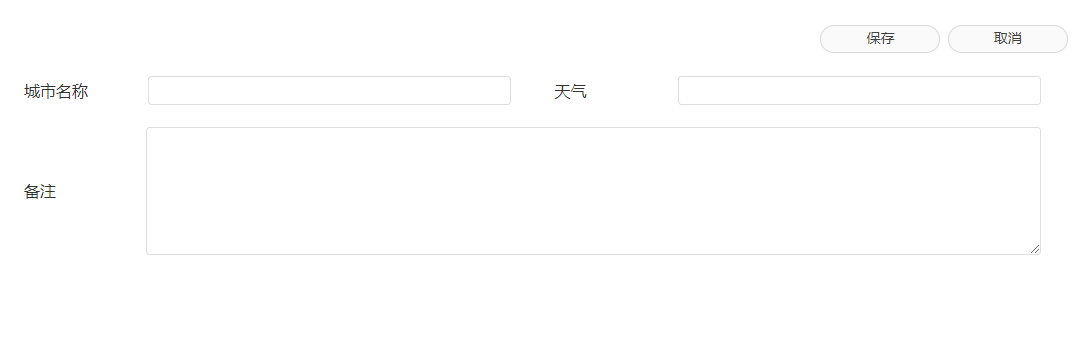

界面如下：
我们希望在新增的时候 用户只需要输入城市名称
在保存的时候 我们调用高德地图连接器 把所有返回信息放到备注字段 把天气获取到放到天气字段里面
保存流程设置
在业务设计-》表单里面找到该表单

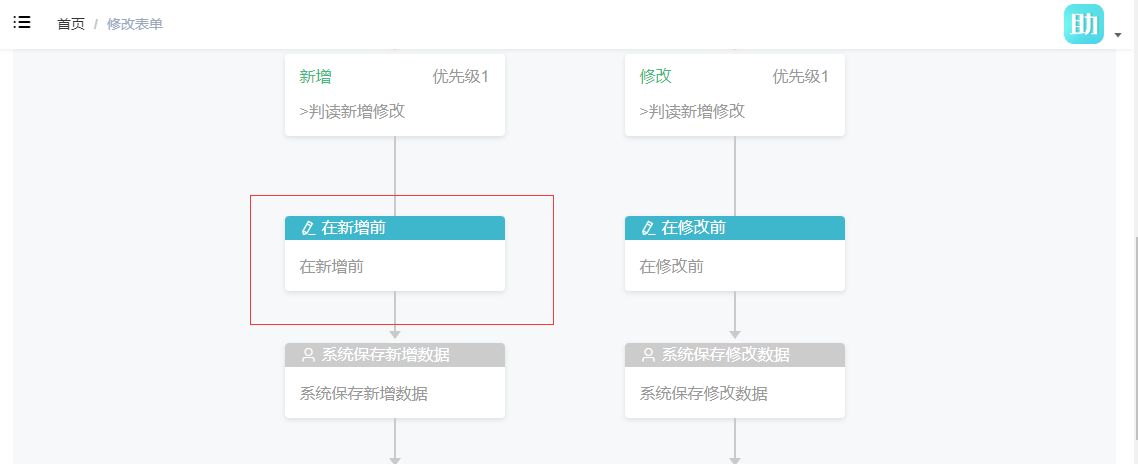

点击编辑 后台流程 保存 找到在新增前

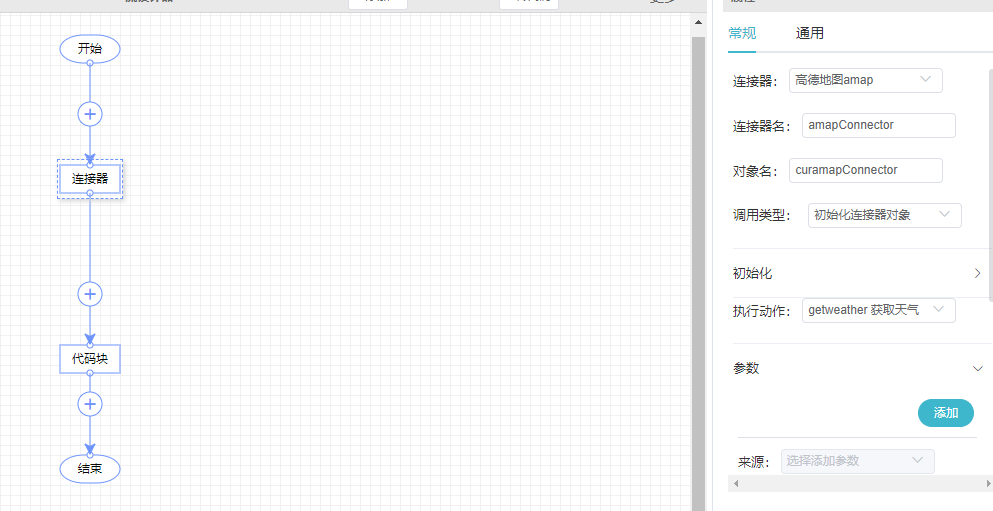

点击后编辑码流 添加常用工具-》连接器节点
选中高德地图连接器
初始化哪里 密钥ClientSecret 地方填写高德地图key：0f23b3c96ceaf0278ad2276a00767bbc
执行动作那里选择获取天气getweather方法

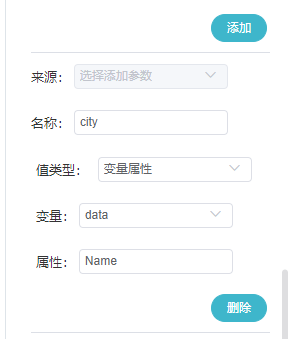

然后需要填写city参数
city参数就是用户在界面上输入的城市名称
说明：表单保存这里 data变量会保存整个表单的数据 这个选择属性 data 然后选择Name
返回值那里添加变量 声明 变量名称为wretmsg 类型为 ZmReturnMsg
这样通过高德地图获取到的天气数据就保存到wretmsg 变量里面了

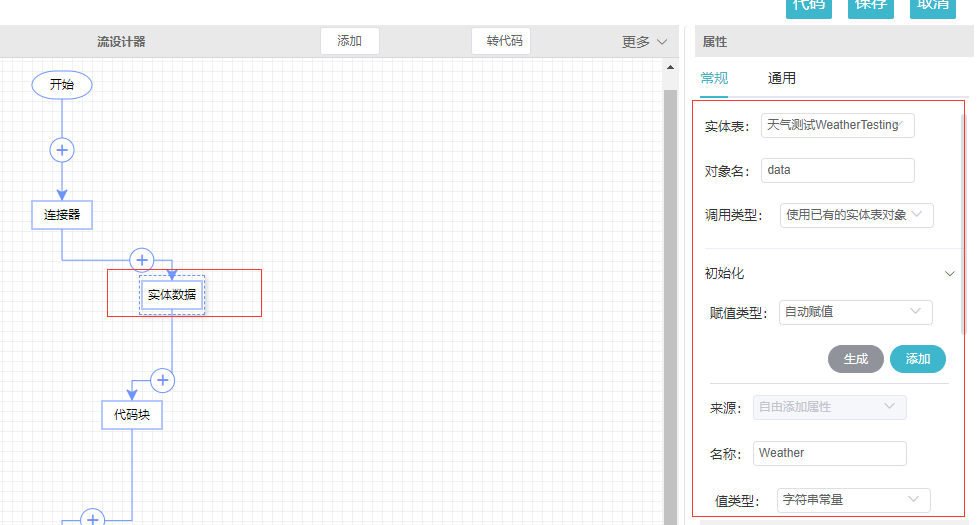

接着添加实体数据节点
实体表选择 天气测试
对象名 填入data
调用类型 录入使用已有的实体表对象
初始化地方选择自动赋值 点击生成
在生成的字段中我们只需要Weather和Note 字段 只保留这两个字段 其他字段删除
数据见下面的json
json
"status": "1",
"count": "1",
"info": "OK",
"infocode": "10000",
"lives": [{
"province": "北京",
"city": "东城区",
"adcode": "110101",
"weather": "晴",
"temperature": "25",
"winddirection": "西南",
"windpower": "≤3",
"humidity": "14",
"reporttime": "2024-05-07 12:03:47",
"temperature_float": "25.0",
"humidity_float": "14.0"
}]
}
wretmsg 里面的ResponseString字段代表上面整个json

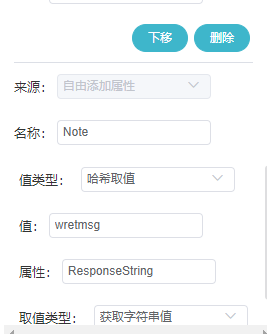

Note 取值类型 哈希取值 值wretmsg 属性ResponseString 取值类型获取字符串值
Weather 先顺便写个固定字符串 test
点击保存 然后保存整个表单 到运行端 新建

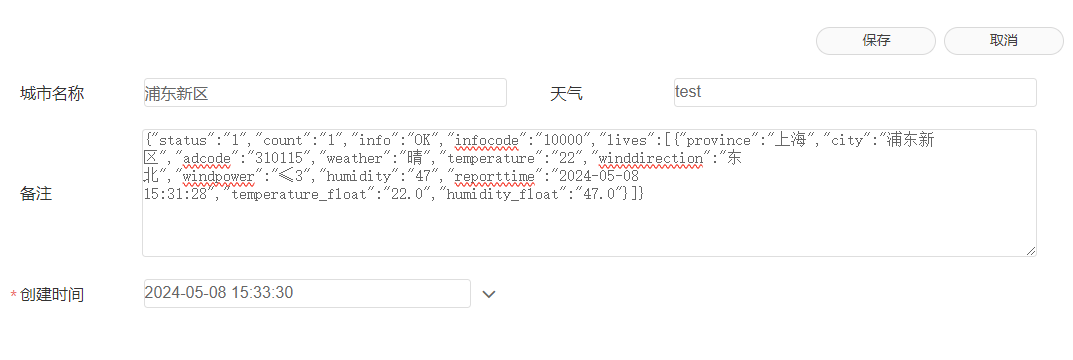

城市输入 浦东新区 点击保存 看看效果
如上图可以看到整个json信息是已经录入到了备注字段里面
上面获取到的json不是简单 我们需要的weather字段在lives数组里面的元素里面的weather字段里
接下来我们一步步取到这个天气字段
1：获取整个json的哈希对象，手写添加函数调用节点
设置的地方选择函数
appcom.common.util-》HttpUtil -》GetResponseJsonHash 获取响应body里面的Json字符串转换为Hash的内容
参数里面录入我获取到的wretmsg
返回那里填写变量声明 起个变量名称rethash 类型为ZmHash 哈希对象 代码整个json的哈希数据

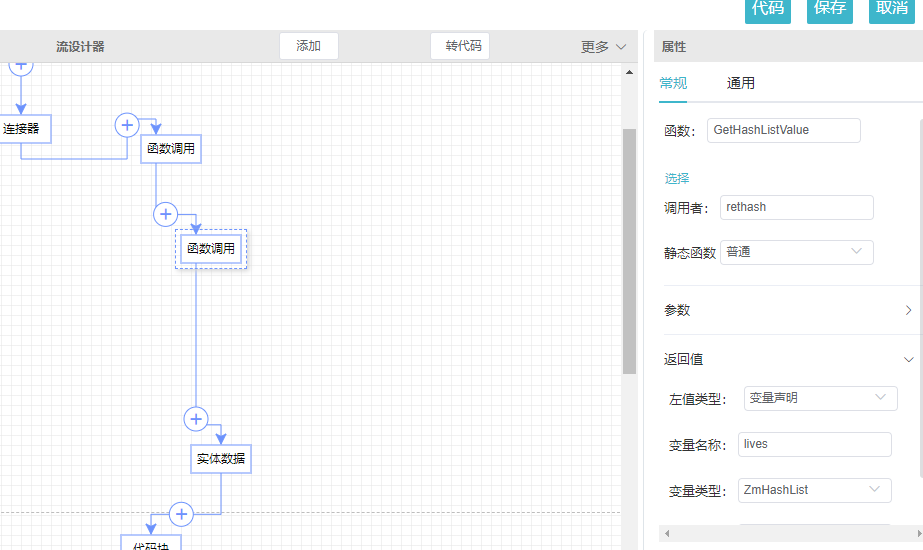

2：从该对象里面获取lives 哈希对象列表对象
调用rethash的GetHashListValue方法获取lives 这个ZmHashList对象
3：从lives中获取第一个哈希对象（不考虑没有或者多个数据的情况）

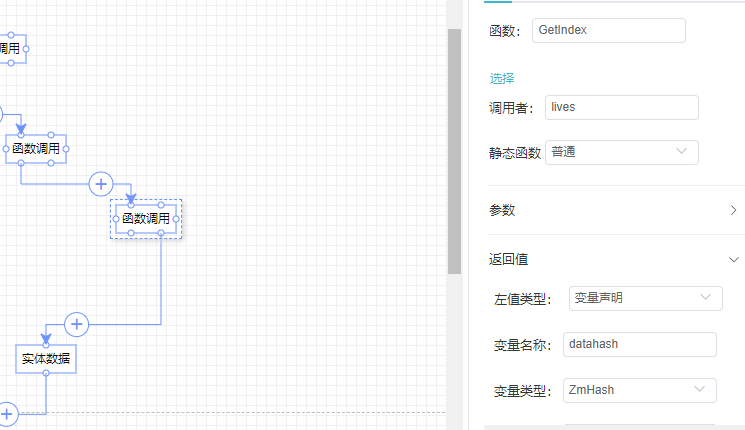

调用lives的GetIndex方法 得到第一个对象
返回值为变量声明 datahash ZmHash对象
到此数据datahash就是我们要的lives下面的有天气的对象了
修改刚才我们谁便设置的那个天气字段 Weather
哈希取值 值datahash 属性weather 取值类型获取字符串值
到此取值全部完成 保存再运行
运行后可以看到取到正确结果了
